Predefined configuration/projects

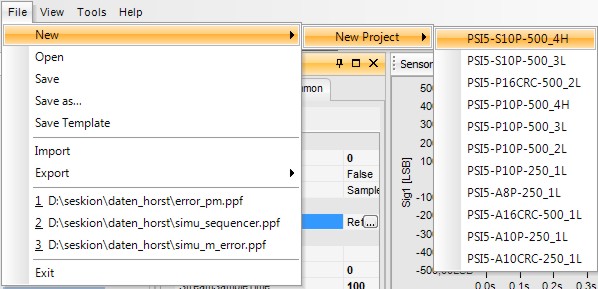

After installation of the Simulyzer 11 predefined configurations are already included, they are saved as empty projects. The syntax of the description accords the PSI5 specification.

If you wish to add your own configurations to the list, you have to save the configuration as template.






Project description

BUS definition

PSI5-S10P-500_4H

Serial - 10 bit Parity - 500ms Synchronous impulse distance 4 sensors Highspeed

PSI5-S10P-500_3L

Serial 10 bit Parity - 500ms Synchronous impulse distance 3 sensors Lowspeed

PSI5-P16CRC-500_2L

Parallel 16 bit CRC - 500ms Synchronous impulse distance 2 sensors Lowspeed

PSI5-P10P-500_4H

Parallel 10 bit CRC - 500ms Synchronous impulse distance 4 sensors Highspeed

PSI5-P10P-500_3L

Parallel 10 bit Parity - 500ms Synchronous impulse distance 3 sensors Lowspeed

PSI5-P10P-500_2L

Parallel 10 bit Parity - 500ms Synchronous impulse distance 2 sensors Lowspeed

PSI5-P10P-250_1L

Parallel 10 bit Parity - 250ms Synchronous impulse distance 1 sensor Lowspeed

PSI5-A8P-250_1L

Asynchronous 8 bit Parity - 250ms data package distance 1 sensor Lowspeed

PSI5-A16CRC-500_1L

Asynchronous 16 bit CRC - 500ms data package distance 1 sensor Lowspeed

PSI5-A10P-250_1L

Asynchronous 10 bit Parity - 250ms data package distance 1 sensor Lowspeed

PSI5-A10CRC-250_1L

Asynchronous 10 bit CRC - 250ms data package distance 1 sensor Lowspeed
