A measurement loop contains the master data, which are done one after the other. The first command is at the loop address and represents the start of the loop (the automatically generated Number of the command line in column No). Ti have to entered in the input field Loop-Address and will be highlighted in blue after the entry. The end of the loop is the end of the list..

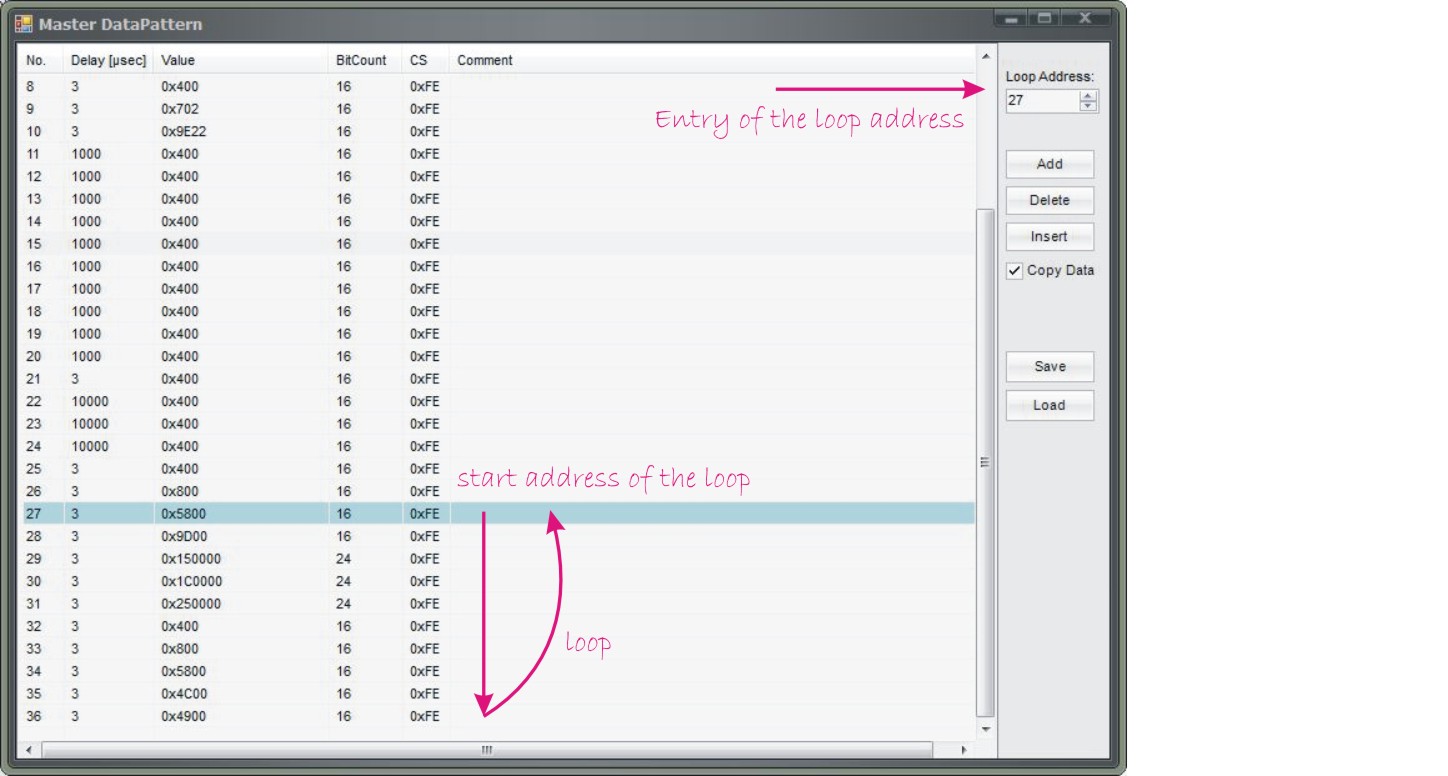

Example of a loop definition:
| Procedure | |
|
Enter all master data command of the init phase and after that the master data commands of the loop. |
|
Enter the address-No (Column No) of the starting point of the loop in the field Loop-Address. |
