During the running measurement cycle single commands can be injected. Thereby the immediately following data frame is being shown as a history entry. The single command definition allows the generation of special circumstances and the analysis of the communication reaction.

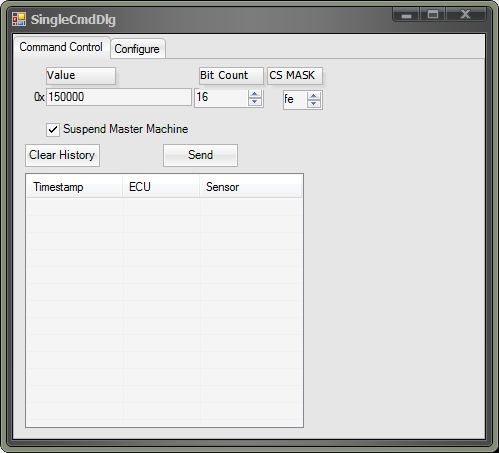

Single commands can be edited directly at the desired input fields:
Value: Data value of the command (sensor specified).
BitCount: Length of the data word in bit.
CS-Mask:
State of the CS line, resp. selection of the desired CS line (CS is selected
if the CS line is on GND):
| CS line | Input value (hex) | ||||
| CS0 | 1 | 1 | 1 | 0 | FE |
| CS1 | 1 | 1 | 0 | 1 | FD |
| CS2 | 1 | 0 | 1 | 1 | FB |
| CS3 | 0 | 1 | 1 | 1 | F7 |
If a command should be generated and used all the time, we recommend to define and store the single command at the Single Command-Editor.
The injection of the single command can be done by following variations:
| Command type | Master data-Editor: |
| Manual single command or defined single command. | Is
running |
| Is
stopped
The commands of the master data editor will be stopped and the single command will be injected. After that the master data will not be continued. |
