Standard sensor definitions are included at the predefined projects.
For individual alignment the definition can be done manually resp. by changing the predefined parameters.
The definition is carried out in the PSI5-Sensor-Collection-Editor.
It is mandatory to define a timeslot, because the signal, which is sent from the sensor, can only be transmitted in a timeslot.
If one sensor sends more than one signal of different kind, it is necessary to define a further timeslot. The additional definition of a timeslot is also possible, if one signal has to be transmitted more than one time. One sensor can contain 6 timeslots.

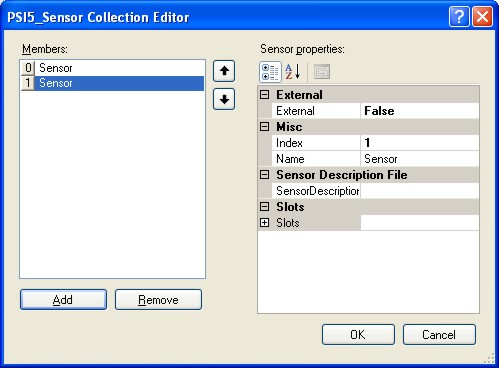

Example at the sensor collection editor:
Definition of a sensor with two timeslots.
Detailed description of the sensor collection editor functions:
After the definition of the sensors the signal definition has to be done.
